Jesko Solar-72BD
SPECIFICATIONS
Module JKM370M-72BD JKM380M-72BD JKM390M-72BD JKM400M-72BD
Maximum Power(Pmax W) 370 380 390 380
Maximum Power Voltage(Vmp V) 39.45 39.59 39.73 39.59
Maximum Power Current(Imp A) 9.38 9.6 9.82 10.26
Open-circuit Voltage(Voc V) 48.5 48.75 49.00 49.16
Short-circuit Current(Isc A) 9.91 10.12 10.42 10.75
Module Efficiency STC 19.00 19.3 19.6 19.9
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.060%°C
Temperature coefficients of Voc(B-Voc) -0.300%°C
Temperature coefficients of Pmax(C-Pmp) -0.380%°C
SPCIFICATION
Module Type Monocrystaline
Dimensions (1979/1956)*992*40(mm)
Weight 26.5(kg)
No. of Cells 72(pcs)
Packing 26sets/ctn
APPLICATION
Maximum System Voltage 1000v/1500v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 20A
Nominal Operating Cell Temperature(NOCT) 45±2°C
Application Class Class A

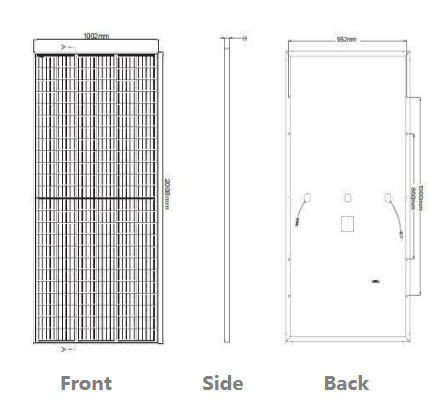

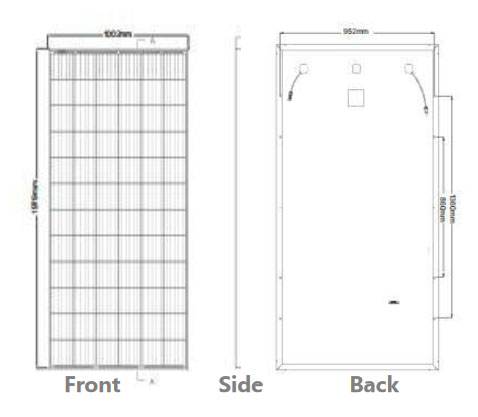

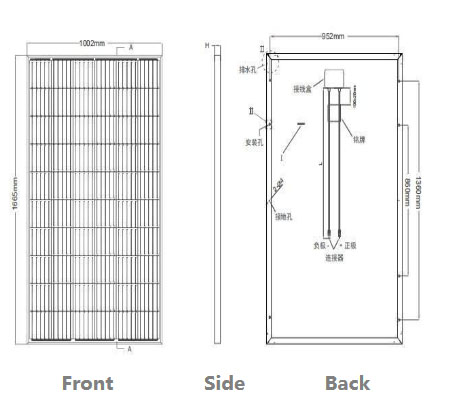

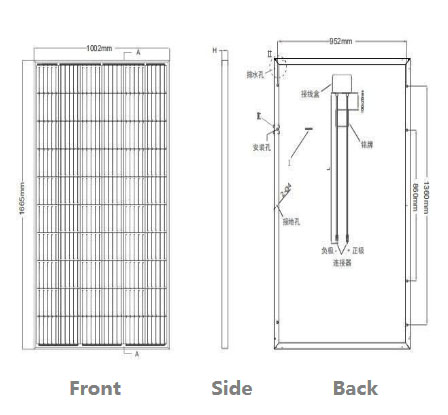

Engineering Drawing

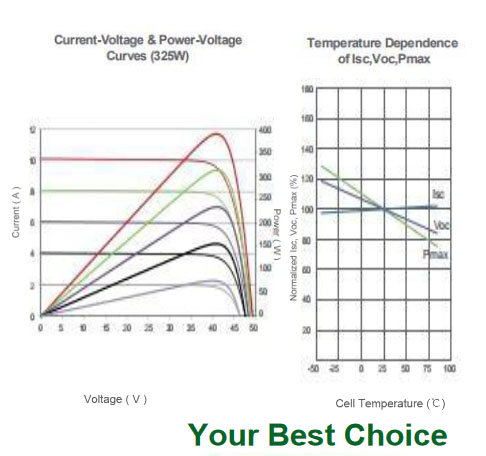

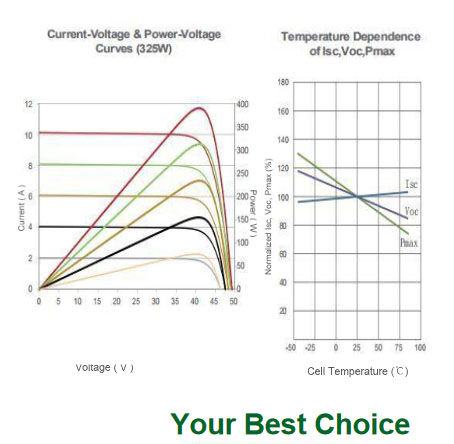

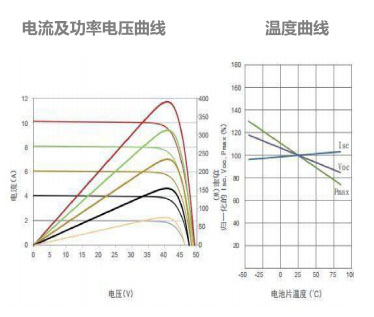

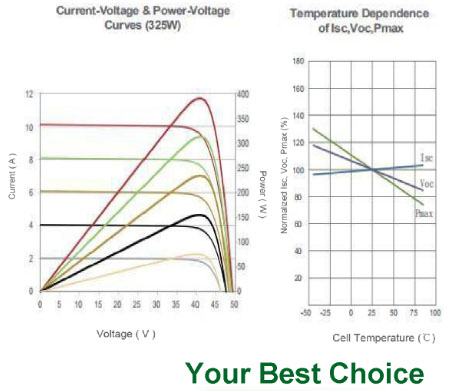

Electical Performance& Temperature Dependence

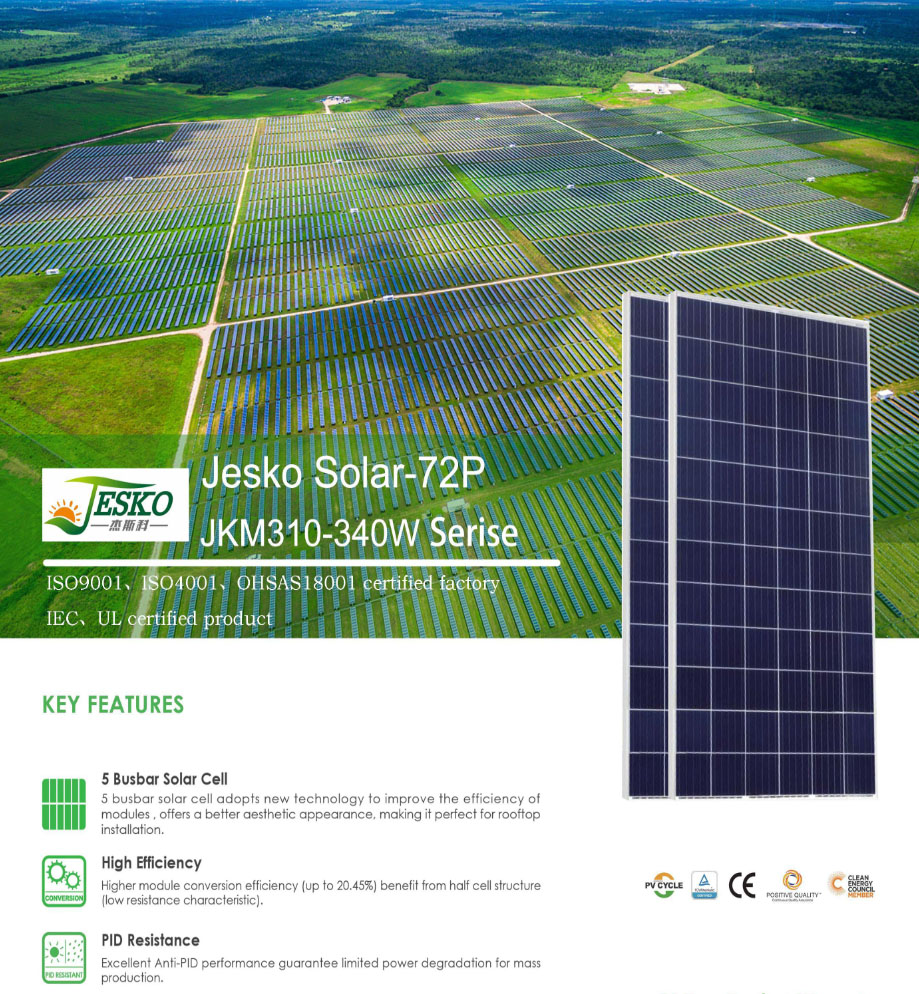

Jesko Solar-72P
SPECIFICATIONS
Module JKM310P-72 JKM320P-72 JKM330P-72 JKM340P-72
Maximum Power(Pmax W) 310 320 330 340
Maximum Power Voltage(Vmp V) 37 37.4 37.8 38.2
Maximum Power Current(Imp A) 8.38 8.56 8.74 8.91
Open-circuit Voltage(Voc V) 46 46.4 46.9 47.5
Short-circuit Current(Isc A) 8.87 9.05 9.14 9.22
Module Efficiency STC 15.99 16.49 17.01 17.52
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.058%°C
Temperature coefficients of Voc(B-Voc) -0.300%°C
Temperature coefficients of Pmax(C-Pmp) -0.400%°C
SPCIFICATION
Module Type Polycrystaline
Dimensions (1979/1956)*992*40(mm)
Weight 26.5(kg)
No.of Cells 72(pcs)
Packing 26sets/ctn
APPLICATION
Maximum System Voltage 1000v/1500v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 20A
Nominal Operating Cell Temperature(NOCT) 45±2°C
Application Class Class A

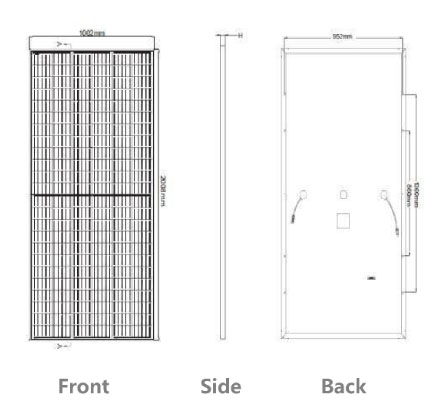

Engineering Drawing

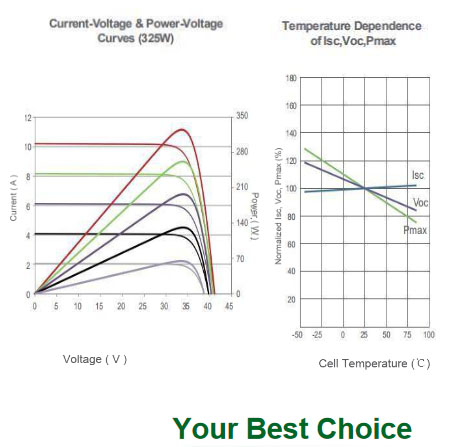

Electical Performance& Temperature Dependence
Jesko Solar-36M
SPECIFICATIONS
Module JKM120M-6SH JKM140M-6SH JKM160M-6SH JKM170M-6SH
Maximum Power(Pmax W) 120±5% 140±5% 160±5% 170±5%
Maximum Power Voltage(Vmp V) 17.0 17.1 18.5 19.4
Maximum Power Current(Imp A) 7.06 8.2 8.62 8.75
Open-circuit Voltage(Voc V) 19.03±5% 20.83±5% 22.63±5% 23.53±5%
Short-circuit Current(Isc A) 8.28±5% 8.72±5% 9.16±5% 9.36±5%
Module Efficiency STC 14.99%
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.037%°C
Temperature coefficients of Voc(B-Voc) -0.340%°C
Temperature coefficients of Pmax(C-Pmp) -0.480%°C
SPCIFICATION
Module Typ Monocrystaline
Dimensions 1480*680*40(mm)
Weight 12(kg)
No.of Cells 36(pcs)
Packing 2sets/ctn
APPLICATION
Maximum System Voltage 1000v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 15A
Nominal Operating Cell Temperature(NOCT) 45±2°C
Application Class Class A

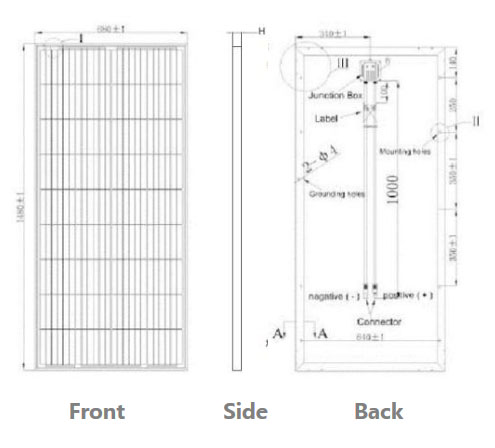

Engineering Drawing

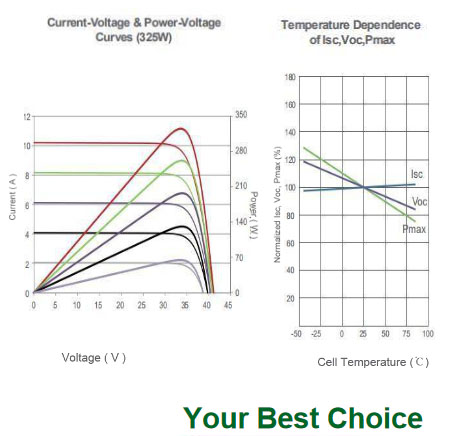

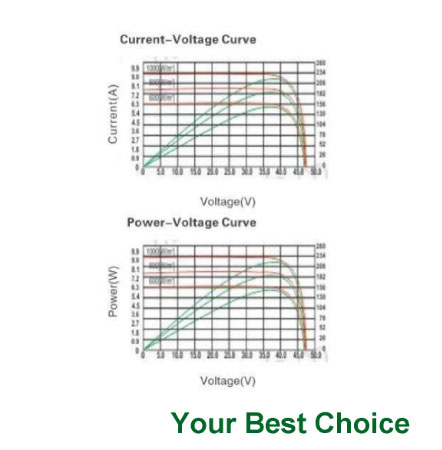

Electical Performance
Jesko Solar-36M
SPECIFICATIONS
Module JKM150M-36 JKM160M-36 JKM170M-36 JKM180M-36
Maximum Power(Pmax W) 150 160 170 180
Maximum Power(Vmp V) 16.01 16.77 17.53 18.29
Maximum Power(Imp A) 9.42 9.56 9.7 9.84
Open-circuit Voltage(Voc V) 21.19 22.07 22.95 23.83
Short-circuit Current(Isc A) 9.42 9.56 9.7 9.84
Module Efficiency STC 14.99%
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.037%°C
Temperature coefficients of Isc(B-Voc) -0.340%°C
Temperature coefficients of Pmax(C-Pmp) -0.480%°C
SPCIFICATION
Module Type Monocrystaline
Dimensions 1480*680*40(mm)
Weight 12(kg)
No.of Cells 36(pcs)
Packing 2sets/ctn
APPLICATION
Maximum System Voltage 1000v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 15A
Nominal Operating Cell 45±2°C
Application Class Class A

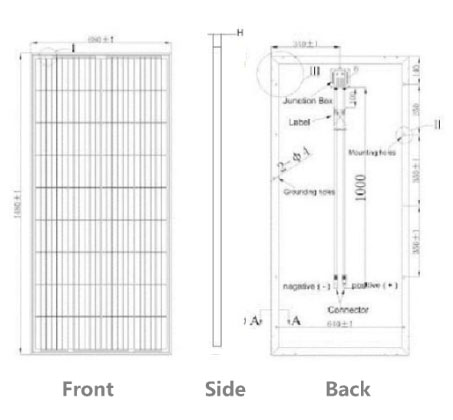

Engineering Drawing

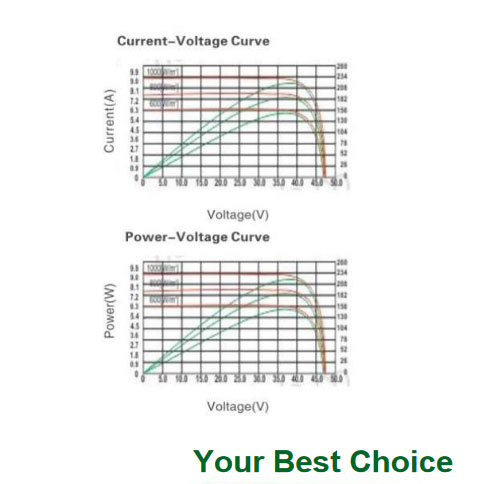

Electical Performance
Jesko Solar-36P
SPECIFICATIONS
Module JKM140P-36 JKM150P-36 JKM160P-36 JKM170P-36
Maximum Power(Pmax W) 140±5% 150±5% 160±5% 170±5%
Maximum Power(Vmp V) 17.1 17.8 18.5 19.4
Maximum Power(Imp A) 8.2 8.49 8.62 8.75
Open-circuit Voltage(Voc V) 20.83±5% 21.73±5% 22.63±5% 23.53±5%
Short-circuit Current(Isc A) 8.72±5% 8.94±5% 9.16±5% 9.36±5%
Module Efficiency STC 14.99%
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.037%°C
Temperature coefficients of Isc(B-Voc) -0.340%°C
Temperature coefficients of Pmax(C-Pmp) -0.480%°C
SPCIFICATION
Module Type Polycrystaline
Dimensions 1480*680*40(mm)
Weight 12(kg)
No.of Cells 36(pcs)
Packing 2sets/ctn
APPLICATION
Maximum System Voltage 1000v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 15A
Nominal Operating Cell 45±2°C
Application Class Class A
Engineering Drawing

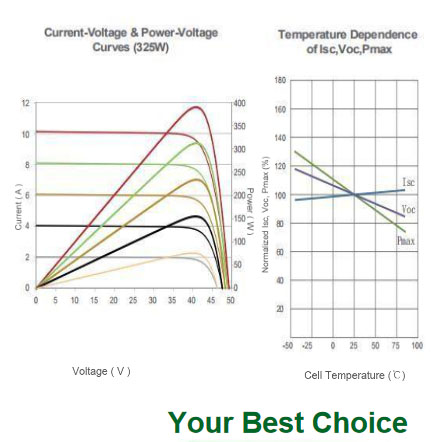

Electical Performance & Temperature Dependence
Jesko Solar-60P
SPECIFICATIONS
Module JKM260P-60 JKM270P-60 JKM280P-60 JKM290P-60
Maximum Power(Pmax W) 260 270 280 290
Maximum Power(Vmp V) 30.71 31.13 31.61 32.06
Maximum Power(Imp A) 8.47 8.67 8.86 9.05
Open-circuit Voltage(Voc V) 37.74 38.17 38.65 39.11
Short-circuit Current(Isc A) 9.04 9.18 9.37 9.56
Module Efficiency STC(%) 15.90 16.50 17.10 17.70
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.060%°C
Temperature coefficients of Isc(B-Voc) -0.300%°C
Temperature coefficients of Pmax(C-Pmp) -0.380%°C
SPCIFICATION
Module Type Polycrystaline
Dimensions 1650*992*35(mm)
Weight 18(kg)
No.of Cells 60(pcs)
Packing 30sets/ctn
APPLICATION
Maximum System Voltage 1000v/1500v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 15A
Nominal Operating Cell 45±2°C
Application Class Class A
Engineering Drawing

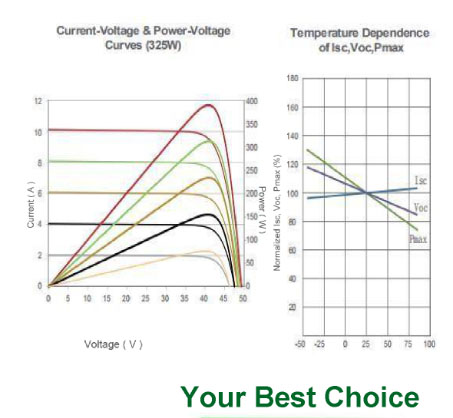

Electical Performance & Temperature Dependence
Jesko Solar-60M
SPECIFICATIONS
Module JKM290M-60 JKM300M-60 JKM310M-60 JKM320M-60
Maximum Power(Pmax W) 290 300 310 320
Maximum Power(Vmp V) 31.8 32.26 32.84 33.17
Maximum Power(Imp A) 9.12 9.30 9.44 9.65
Open-circuit Voltage(Voc V) 39.46 39.85 40.30 40.78
Short-circuit Current(Isc A) 9.57 9.75 9.91 10.18
Module Efficiency STC(%) 17.00 18.30 19.10 19.40
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.060%°C
Temperature coefficients of Isc(B-Voc) -0.300%°C
Temperature coefficients of Pmax(C-Pmp) -0.380%°C
SPCIFICATION
Module Type Polycrystaline
Dimensions 1650*992*35(mm)
Weight 18(kg)
No.of Cells 60(pcs)
Packing 30sets/ctn
APPLICATION
Maximum System Voltage 1000v/1500v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 15A
Nominal Operating Cell 45±2°C
Application Class Class A
Engineering Drawing
Electical Performance & Temperature Dependence
Jesko Solar-72H-M
SPECIFICATIONS
Module JKM380M-72H JKM390M-72H JKM395M-72H JKM400M-72H
Maximum Power(Pmax W) 380 390 395 400
Maximum Power(Vmp V) 41.23 41.55 42.13 42.29
Maximum Power(Imp A) 9.24 9.30 9.39 9.46
Open-circuit Voltage(Voc V) 48.93 49.24 50.15 51.01
Short-circuit Current(Isc A) 9.90 10.00 10.15 10.25
Module Efficiency STC(%) 20.38 21.33 21.83 22.33
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.060%°C
Temperature coefficients of Isc(B-Voc) -0.300%°C
Temperature coefficients of Pmax(C-Pmp) -0.380%°C
SPCIFICATION
Module Type Monocrystaline
Dimensions 2008*1002*40(mm)
Weight 24(kg)
No.of Cells 144(pcs)
Packing 26sets/ctn
APPLICATION
Maximum System Voltage 1000v/1500v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 20A
Nominal Operating Cell 45±2°C
Application Class Class A

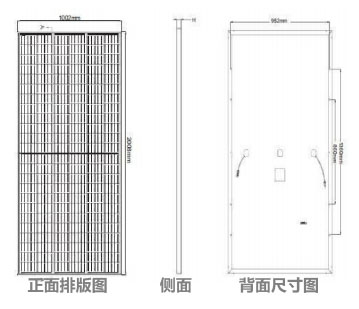

Engineering Drawing
Electical Performance & Temperature Dependence

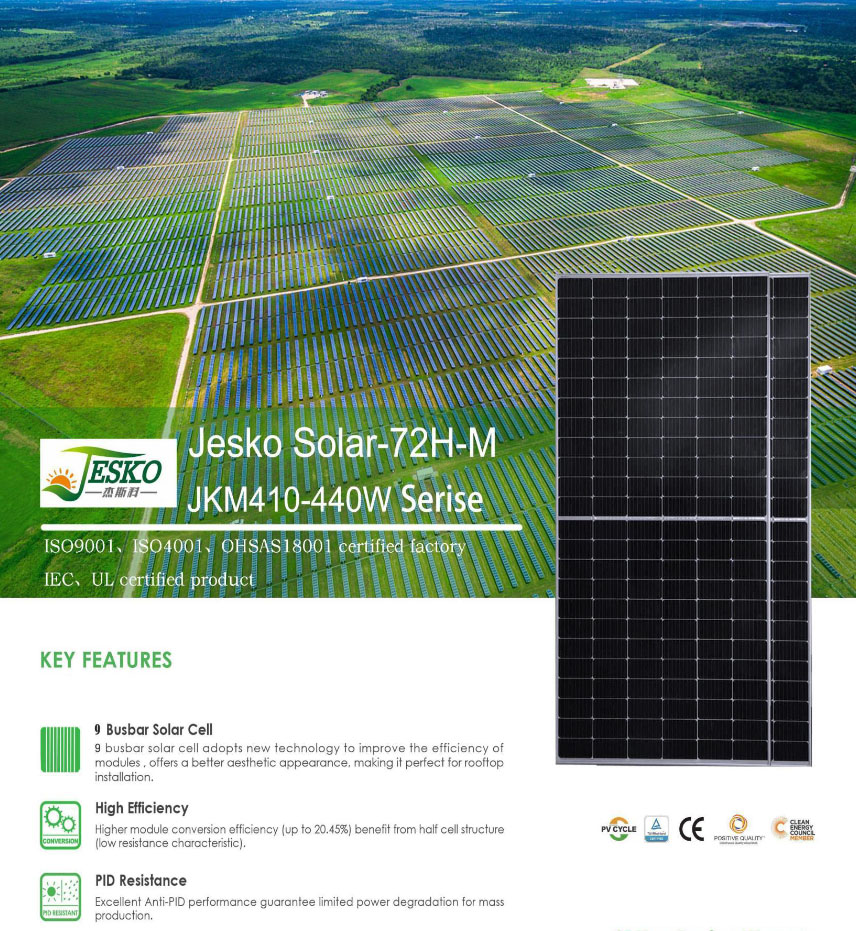

Jesko Solar-72H-M
SPECIFICATIONS
Module JKM410M-72H JKM420M-72H JKM430M-72H JKM440M-72H
Maximum Power(Pmax W) 410 420 430 440
Maximum Power(Vmp V) 42.30 42.90 43.50 44.10
Maximum Power(Imp A) 9.69 9.78 9.87 9.96
Open-circuit Voltage(Voc V) 50.40 51.00 51.60 52.20
Short-circuit Current(Isc A) 10.60 10.84 11.08 11.32
Module Efficiency STC(%) 20.38 21.33 21.83 22.33
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.060%°C
Temperature coefficients of Isc(B-Voc) -0.300%°C
Temperature coefficients of Pmax(C-Pmp) -0.380%°C
SPCIFICATION
Module Type Monocrystaline
Dimensions 2008*1002*40(mm)
Weight 24(kg)
No.of Cells 144(pcs)
Packing 26sets/ctn
APPLICATION
Maximum System Voltage 1000v/1500v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 20A
Nominal Operating Cell 45±2°C
Application Class Class A

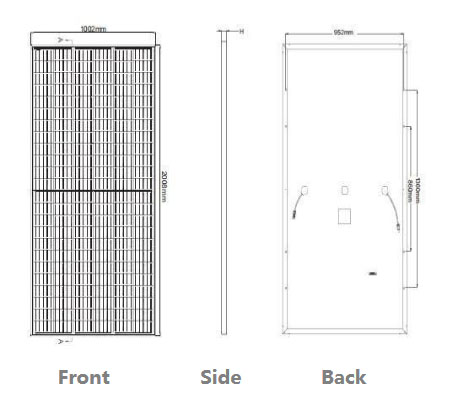

Engineering Drawing
Electical Performance & Temperature Dependence
Jesko Solar-72H-M
SPECIFICATIONS
Module JKM380M-72H JKM390M-72H JKM400M-72H JKM410M-72H
Maximum Power(Pmax W) 380 390 400 410
Maximum Power(Vmp V) 39.80 41.30 41.80 42.30
Maximum Power(Imp A) 9.30 9.44 9.57 9.70
Open-circuit Voltage(Voc V) 48.80 49.20 49.60 50.00
Short-circuit Current(Isc A) 9.98 10.07 10.16 10.25
Module Efficiency STC(%) 18.89 19.38 19.87 20.36
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.060%°C
Temperature coefficients of Isc(B-Voc) -0.300%°C
Temperature coefficients of Pmax(C-Pmp) -0.380%°C
SPCIFICATION
Module Type Monocrystaline
Dimensions 2008*1002*40(mm)
Weight 24(kg)
No.of Cells 144(pcs)
Packing 26sets/ctn
APPLICATION
Maximum System Voltage 1000v/1500v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 20A
Nominal Operating Cell 45±2°C
Application Class Class A
Engineering Drawing
Electical Performance & Temperature Dependence
Jesko Solar-72HBD
SPECIFICATIONS
Module JKM370M-72HBD JKM380M-72HBD JKM390M-72HBD JKM400M-72HBD
Maximum Power(Pmax W) 370 380 390 400
Maximum Power(Vmp V) 39.85 41.23 41.73 42.23
Maximum Power(Imp A) 9.28 9.24 9.34 9.23
Open-circuit Voltage(Voc V) 48.70 48.93 49.15 49.33
Short-circuit Current(Isc A) 9.65 9.90 10.13 10.35
Module Efficiency STC(%) 18.00 18.20 18.50 18.70
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.060%°C
Temperature coefficients of Isc(B-Voc) -0.300%°C
Temperature coefficients of Pmax(C-Pmp) -0.380%°C
SPCIFICATION
Module Type Monocrystaline
Dimensions 2131*1052*35(mm)
Weight 26(kg)
No.of Cells 144(pcs)
Packing 26sets/ctn
APPLICATION
Maximum System Voltage 1000v/1500v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 20A
Nominal Operating Cell 45±2°C
Application Class Class A
Engineering Drawing
Electical Performance & Temperature Dependence
Jesko Solar-78HBD
SPECIFICATIONS
Module JKM465M-8SHBD JKM470M-8SHBD JKM475M-8SHBD JKM480M-8SHBD
Maximum Power(Pmax W) 465 470 475 480
Maximum Power(Vmp V) 43.18 43.28 43.38 43.48
Maximum Power(Imp A) 10.77 10.86 10.95 11.04
Open-circuit Voltage(Voc V) 51.92 52.14 52.24 52.34
Short-circuit Current(Isc A) 11.59 11.68 11.77 11.86
Module Efficiency STC(%) 20.71 20.93 21.16 21.38
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.060%°C
Temperature coefficients of Isc(B-Voc) -0.300%°C
Temperature coefficients of Pmax(C-Pmp) -0.380%°C
SPCIFICATION
Module Type Monocrystaline
Dimensions 2182*1028*35(mm)
Weight 25(kg)
No.of Cells 156(pcs)
Packing 26sets/ctn
APPLICATION
Maximum System Voltage 1000v/1500v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 20A
Nominal Operating Cell 45±2°C
Application Class Class A
Engineering Drawing
Electical Performance & Temperature Dependence
Jesko Solar-78HBD
SPECIFICATIONS
Module JKM580M-8SHBD JKM590M-8SHBD JKM600M-8SHBD JKM610M-8SHBD
Maximum Power(Pmax W) 580 590 600 610
Maximum Power(Vmp V) 44.88 44.91 45.39 45.59
Maximum Power(Imp A) 12.92 13.14 13.22 13.38
Open-circuit Voltage(Voc V) 53.56 54.76 54.95 55.25
Short-circuit Current(Isc A) 13.55 13.71 13.97 14.11
Module Efficiency STC(%) 20.75 21.11 21.46 21.82
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.060%°C
Temperature coefficients of Isc(B-Voc) -0.300%°C
Temperature coefficients of Pmax(C-Pmp) -0.380%°C
SPCIFICATION
Module Type Monocrystaline
Dimensions 2465*1134*35(mm)
Weight 34.6(kg)
No.of Cells 156(pcs)
Packing 26sets/ctn
APPLICATION
Maximum System Voltage 1000v/1500v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 20A
Nominal Operating Cell 45±2°C
Application Class Class A
Engineering Drawing
Electical Performance & Temperature Dependence
Jesko Solar-7SHBD
SPECIFICATIONS
Module JKM530M-7SHBD JKM535M-7SHBD JKM540M-7SHBD JKM550M-7SHBD
Maximum Power(Pmax W) 530 535 540 550
Maximum Power(Vmp V) 41.31 41.47 41.64 41.96
Maximum Power(Imp A) 12.83 12.90 12.97 13.11
Open-circuit Voltage(Voc V) 49.30 49.45 49.60 49.90
Short-circuit Current(Isc A) 13.72 13.79 13.86 14.00
Module Efficiency STC(%) 20.50 20.60 20.80 21.20
Power Tolerance 0~+5W
Temperature coefficients of Isc(A-Isc) 0.060%°C
Temperature coefficients of Isc(B-Voc) -0.300%°C
Temperature coefficients of Pmax(C-Pmp) -0.380%°C
SPCIFICATION
Module Type Monocrystaline
Dimensions 2285*1134*35(mm)
Weight 28.9(kg)
No.of Cells 144(pcs)
Packing 31sets/ctn
APPLICATION
Maximum System Voltage 1000v/1500v
Operating Temperature -40°C~+85°C
Maximum Series Fuse Rating 20A
Nominal Operating Cell 45±2°C
Application Class Class A
Engineering Drawing
Electical Performance & Temperature Dependence
